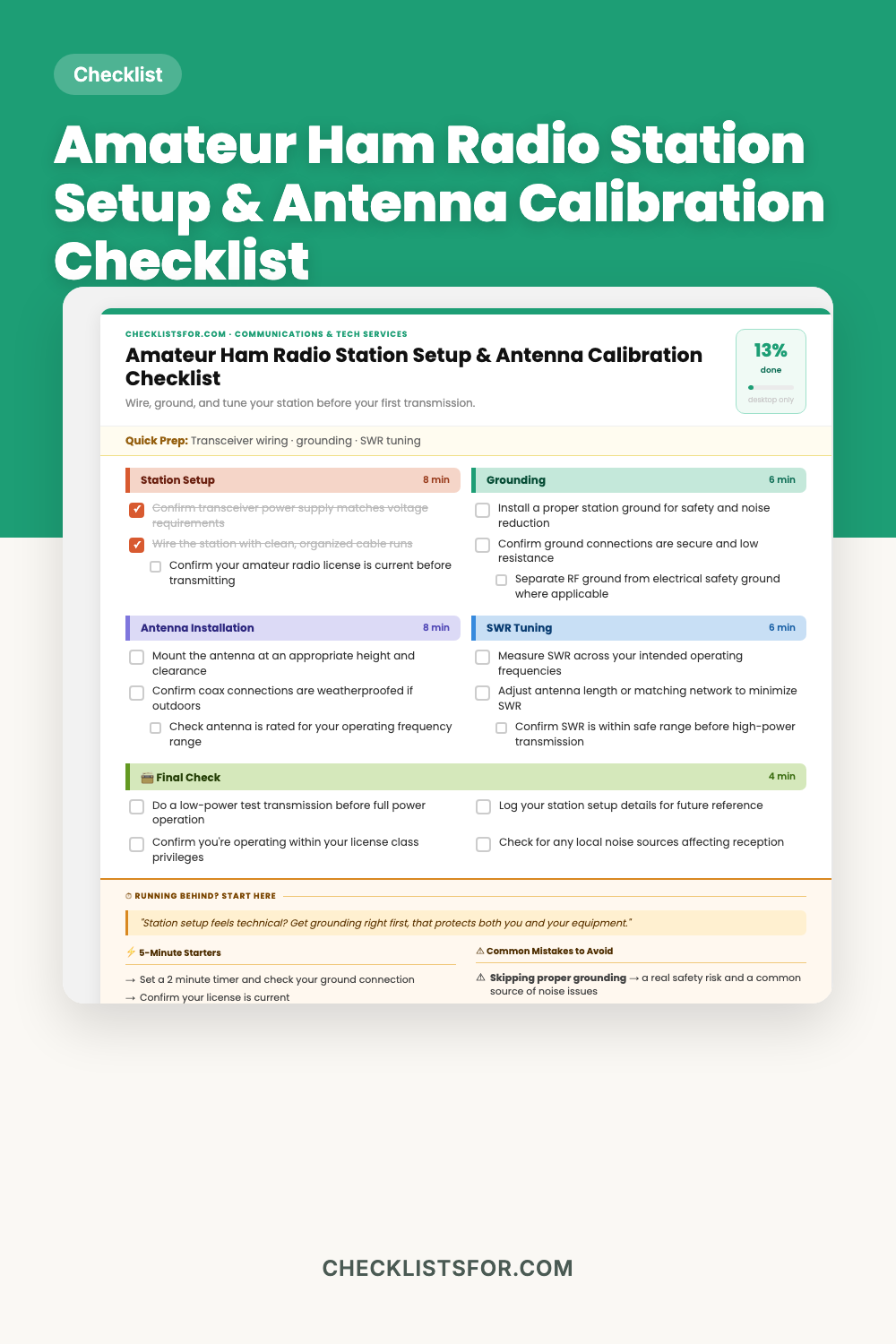

Amateur Ham Radio Station Setup & Antenna Calibration Checklist

A safe, functional ham radio station setup requires proper grounding, correct antenna installation, and SWR tuning confirmed before transmitting at full power.

New ham radio operators sometimes skip proper grounding or don't check SWR thoroughly, risking both equipment damage and safety issues.

Why This Happens

Getting on the air quickly is exciting, but the grounding and tuning steps that protect equipment and ensure a clean signal are easy to rush past in that excitement.

What's Inside

This checklist is interactive, click to check off items in your browser, plus printable if you'd rather keep it at your station, and it covers transceiver wiring, grounding, and SWR tuning specific to amateur ham radio setup.

Quick Tips

Ground your station properly from the start.

Measure SWR across your full intended operating range.

Weatherproof outdoor coax connections against moisture.

Pairs well with: Custom Mechanical Keyboard Build Checklist, Commercial Drone Preflight Calibration Checklist

Frequently Asked Questions

Why is grounding so important for a ham radio station?

Proper grounding protects against electrical hazards and reduces noise interference, making it one of the most important safety and performance steps in station setup.

What is SWR and why does it matter?

SWR, or standing wave ratio, measures how efficiently your antenna system transmits power, high SWR can damage your transceiver over time and reduce signal effectiveness.

Do I need a license before setting up my station?

Yes, transmitting requires a current amateur radio license appropriate to your operating privileges, confirm this before any test transmission.

How often should I check my antenna's SWR?

After any setup change, weather event, or periodically as routine maintenance, since antenna conditions can shift over time.
